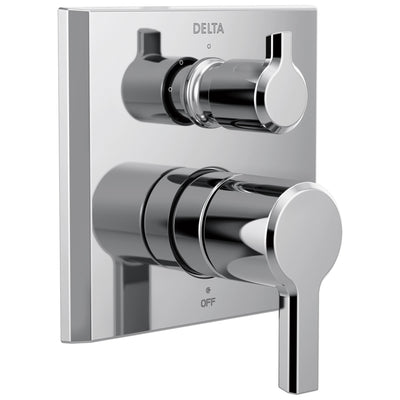

Delta Pivotal Chrome Finish 14 Series Modern Shower Faucet System Control with 3-Setting Integrated Diverter Includes Valve and Handles D3762V


Delta Pivotal Chrome Finish 14 Series Modern Shower Faucet System Control with 3-Setting Integrated Diverter Includes Valve and Handles D3762V

The long and short of it: This 2 handle Monitor 14 Series Shower Control with Integrated 3-setting 2-outlet port Diverter sold COMPLETE with Rough-in Valve is the perfect base for creating a Custom Shower System. The single bottom handle allows you to turn on the shower and the top handle operates the diverter function.

The large bottom lever rotates counter-clockwise to turn on the water. This shower control is both pressure and temperature balanced. This means as you rotate the handle, the volume of water will quickly reach its maximum flow rate. Continuing to turn the lever will increase the temperature to a preset maximum.

This item also features a built-in 3-setting diverter. The handle you see in the upper portion of the shower control panel is for operating the diverter. The diverter's function is to divert water. Once the water is on and flowing at the temperature you set, you need to send it to the spray outlets. This 3-setting diverter allows for 2 peripheral spray outlets. It is the key to supplying water to these shower sprays. With the 3-setting integrated diverter, you can configure a shower system with a normal shower head and a handheld shower. Another configuration might be a ceiling mount shower head and a set of wall mount body sprays. The different diverter settings allow you to choose which sprays will be on at any given time. With a total of 3 settings you have 2 individual positions and 1 shared position. This means you can run either shower spray individually or both together. The choices will depend on how you have configured your shower system. We have a lot of experience setting up Delta Shower Systems so if you need help get in touch!

Buy this item if: You are building a custom shower system. Think of a shower control with integrated diverter as the base of the shower system. Normally you would need to purchase the shower control and diverter separately. Delta has simplified the installation by allowing all controls to be plumbed through a single in wall rough-in valve (included). You have the bottom controls to turn the water on and set the temperature. You also have the top diverter control to send the water to your various peripheral shower system sprays. We want to make buying easy so this item is sold complete with the valve and is ready to install. Order today!

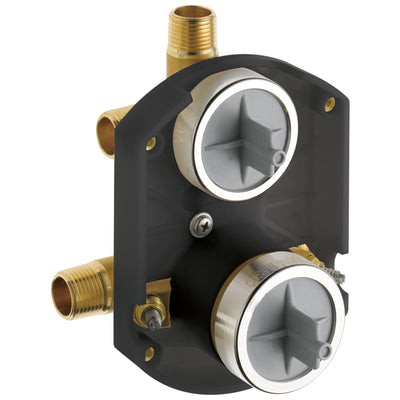

This fixture INCLUDES the required Rough-in Valve with Stops. The Valve is the part that installs in the wall and connects to your home's hot and cold water supply. The Valve included with this item is the R22000-WS MultiChoice Universal with Integrated Diverter one-piece forged Rough-in Valve with Stops. Screwdriver Stops let you shut the water off to this specific shower valve. Stops allow you to work on the individual fixture without the need to shut off the water to the whole house. This unique fixture merges a shower mixing valve and a diverter valve into a single unit, allowing it to serve as the main valve for a full custom shower system. Delta has manufactured all of their Integrated Shower Faucet Control with Diverter Trim kits (the part of the Shower you actually see) to all fit the same Valve. In the future, if you ever plan to change the style or finish of your Integrated Diverter Shower Fixture, you will not need to change out the Valve in the wall (as long as you stick with Delta as the manufacturer). This saves you from having to rip out tile or go through other hassles to change the style of your shower. You can just swap out the old with the new. This advantage allows you to stay up to date with the latest design and home decor trends! The R22000-WS Valve has back-to-back installation capability and is pressure balanced to keep water within a safe +/- 3-degrees F.

Delta Pivotal Chrome Finish 14 Series Modern Shower Faucet System Control with 3-Setting Integrated Diverter Includes Valve and Handles D3762V

Delta Pivotal Chrome Finish 14 Series Modern Shower Faucet System Control with 3-Setting Integrated Diverter Includes Valve and Handles D3762V

Product Information:

  • All items are 100% BRAND NEW, never before used, sold in the original packaging with manufacturer's warranty in tact.
  • Delta Pivotal Collection Shower System Control
  • Delta Pivotal Collection
  • Color / Finish: Chrome
  • Brand: Delta
  • COMPLETE COMPATIBILITY: All items are made by the same manufacturer. They and are designed to function as a package and are guaranteed compatible.
  • COMPLETE ITEM: EVERYTHING necessary for installation INCLUDED. This fixture comes with a genuine Delta Trim Kit along with the required Delta in Rough-in Valve, guaranteed to work together. Take out the guess work! We've used our expertise to put together this package so you can buy this item and get everything you need all at once!
  • Includes: Delta Pivotal Chrome Finish 2-Handle Monitor 14 Series Shower Control Trim Kit with 3-Setting Integrated Diverter
  • Includes: Delta Multichoice Integrated Diverter Shower Rough-in Valve with Stops R22000-WS
  • Have questions? Read more about Shower Systems with Integrated Diverter Controls
  • Product Type: Faucet > Showering Component > Diverter
  • View other items in this category
  • View similar finish items in this category
  • View all items with similar handles and finish
  • Shower System Control with 3 Function Diverter
  • Includes 2 Lever Style Handles
  • Includes Both Monitor 14 Series Single Function Shower Cartridge and 3 Function Diverter Cartridge
  • Two ports and three settings for two independent and one shared position, ADA Compliant, Not recommended for tub spout applications
  • Country of Origin: UNITED STATES. Assembled in the US with Domestic and Foreign Components
  • Warranty: Lifetime Delta warranty on both function and finish
  • All items are 100% genuine, brand new in the original packaging, and are sold with the manufacturer warranty in tact. Add to Cart Now!
  • Need Inspiration, Check out our Top Sellers!
