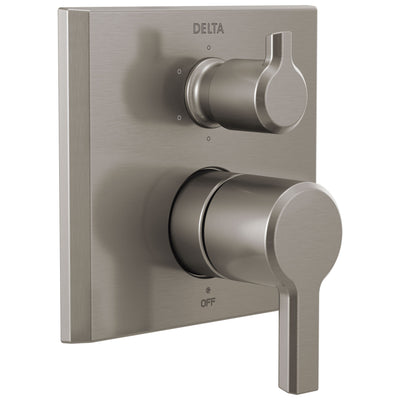

The long and short of it: This 2 handle Monitor 14 Series Shower Control with Integrated 6-setting 3-outlet port Diverter sold COMPLETE with Rough-in Valve is the perfect base for creating a Custom Shower System. The single bottom handle allows you to turn on the shower and the top handle operates the diverter function.
The large bottom lever rotates counter-clockwise to turn on the water. This shower control is both pressure and temperature balanced. This means as you rotate the handle, the volume of water will quickly reach its maximum flow rate. Continuing to turn the lever will increase the temperature to a preset maximum.
This item also features a built-in 6-setting diverter. The handle you see in the upper portion of the shower control panel is for operating the diverter. The diverter's function is to divert water. Once the water is on and flowing at the temperature you set, you need to send it to the spray outlets. This 6-setting diverter allows for a total of 3 peripheral spray outlets. It is the key to supplying water to these shower sprays. With the 6-setting integrated diverter, you can configure a shower system with a normal shower head, a handheld shower, and a set of body sprays. Another configuration might be a ceiling mount shower head, a handheld shower, and a normal shower head. The different settings allow you to choose which sprays will be on at any given time. With a total of 6 settings you have 3 individual positions and 3 shared positions. This allows you to run any shower spray independently or in any combination of 2 at the same time. For example, you could turn on just the showerhead, or the showerhead and handheld shower, or the body sprays and shower head, or just the handheld shower alone etc. etc. The choices will depend on how you have configured your shower system. We have a lot of experience setting up Delta Shower Systems so if you need help get in touch!
Buy this item if: You are building a custom shower system. Think of a shower control with integrated diverter as the base of the shower system. Normally you would need to purchase the shower control and diverter separately. Delta has simplified the installation by allowing all controls to be plumbed through a single in wall rough-in valve (included). You have the bottom controls to turn the water on and set the temperature. You also have the top diverter control to send the water to your various peripheral shower system sprays. We want to make buying easy so this item is sold complete with the valve and is ready to install. Order today!

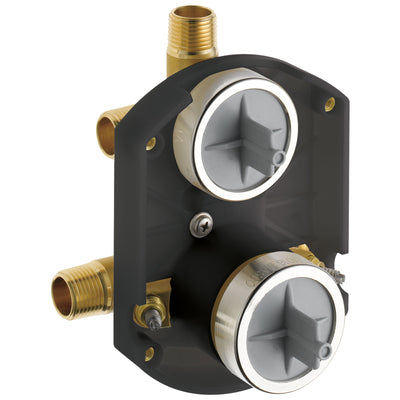

This fixture INCLUDES the required Rough-in Valve with Stops. The Valve is the part that installs in the wall and connects to your home's hot and cold water supply. The Valve included with this item is the R22000-WS MultiChoice Universal with Integrated Diverter one-piece forged Rough-in Valve with Stops. Screwdriver Stops let you shut the water off to this specific shower valve. Stops allow you to work on the individual fixture without the need to shut off the water to the whole house. This unique fixture merges a shower mixing valve and a diverter valve into a single unit, allowing it to serve as the main valve for a full custom shower system. Delta has manufactured all of their Integrated Shower Faucet Control with Diverter Trim kits (the part of the Shower you actually see) to all fit the same Valve. In the future, if you ever plan to change the style or finish of your Integrated Diverter Shower Fixture, you will not need to change out the Valve in the wall (as long as you stick with Delta as the manufacturer). This saves you from having to rip out tile or go through other hassles to change the style of your shower. You can just swap out the old with the new. This advantage allows you to stay up to date with the latest design and home decor trends! The R22000-WS Valve has back-to-back installation capability and is pressure balanced to keep water within a safe +/- 3-degrees F.
FaucetList.com is an Authorized Delta Online Distributor. The product you are ordering is a GENUINE Delta product sold by us, an authorized Delta Distributor. This product is guaranteed to be brand new and in the original box. Founded in 1954, Delta is America's faucet innovation leader. Their name represents what's possible in today's plumbing technologies. They're driven by a quest to discover smarter ways for people to experience and live with water. FaucetList.com is an authorized Delta Distributor therefore all product warranties apply to you as the end consumer.
All parts and finishes of the Delta faucet are warranted to the original consumer purchaser to be free from defects in material and workmanship for as long as the original consumer purchaser owns their home. Delta recommends using a professional plumber for all installation and repair.
This warranty is extensive in that it covers replacement of all defective parts and even finish! Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves defective in material and/or workmanship under normal installation, use and service.
SKU: D3738V, MPN: T24999-SS, R22000-WS, UPC: '796115985348
